    SAE Flat Washer Dimensions

    SAE Flat Washer Dimensions Per ASME B18.21.1

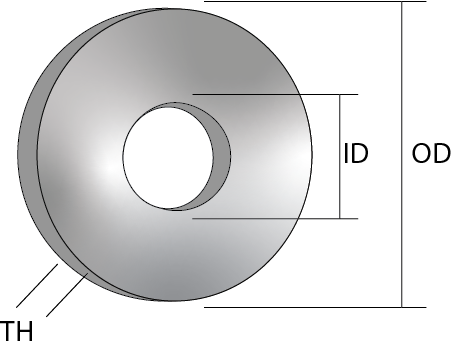

    Size Inside Diameter (ID) Outside Diameter (OD) Thickness (TH)
    Tolerance Tolerance
    Basic Plus Minus Basic Plus Minus Max Min
    #4 0.125 0.008 0.005 0.312 0.008 0.005 0.040 0.025
    #6 0.156 0.008 0.005 0.375 0.015 0.005 0.065 0.036
    #8 0.188 0.008 0.005 0.438 0.015 0.005 0.065 0.036
    #10 0.219 0.008 0.005 0.500 0.015 0.005 0.065 0.036
    #12 0.250 0.015 0.005 0.562 0.015 0.005 0.080 0.051
    1/4 0.281 0.015 0.005 0.625 0.015 0.005 0.080 0.051
    5/16 0.344 0.015 0.005 0.688 0.015 0.007 0.080 0.051
    3/8 0.406 0.015 0.005 0.812 0.015 0.007 0.080 0.051
    7/16 0.469 0.015 0.005 0.922 0.015 0.007 0.080 0.051
    1/2 0.531 0.015 0.005 1.062 0.030 0.007 0.121 0.074
    9/16 0.594 0.015 0.005 1.156 0.030 0.007 0.121 0.074
    5/8 0.656 0.030 0.007 1.312 0.030 0.007 0.121 0.074
    3/4 0.812 0.030 0.007 1.469 0.030 0.007 0.160 0.108
    7/8 0.938 0.030 0.007 1.750 0.030 0.007 0.160 0.108
    1 1.062 0.030 0.007 2.000 0.030 0.007 0.160 0.108
    1 1/8 1.250 0.030 0.007 2.250 0.030 0.007 0.160 0.108
    1 1/4 1.375 0.030 0.007 2.500 0.030 0.007 0.192 0.136
    1 3/8 1.500 0.030 0.007 2.750 0.030 0.007 0.192 0.136
    1 1/2 1.625 0.030 0.007 3.000 0.030 0.007 0.192 0.136
    1 3/4 1.875 0.045 0.010 3.375 0.045 0.010 0.213 0.153
    2 2.125 0.045 0.010 3.750 0.045 0.010 0.213 0.153
